AB-8

Signal Switcher

Product information

● Brand: Whirlwind
● 8-channel A/B switching for balanced line-level, mic-level, or MIDI signals
● Each channel can be controlled individually or globally via master control circuit
● Internal DIP switches configure ground path switching and DC blocking options
● Configurable as 2-in-1-out, 1-in-2-out, or mixed routing topologies
● Individual channel status indicators
● Automatically switches to redundant backup signal paths during live performances
● Enables seamless mixing and track switching in recording applications
● Fail-safe design connects all A inputs to COMMON when power is removed

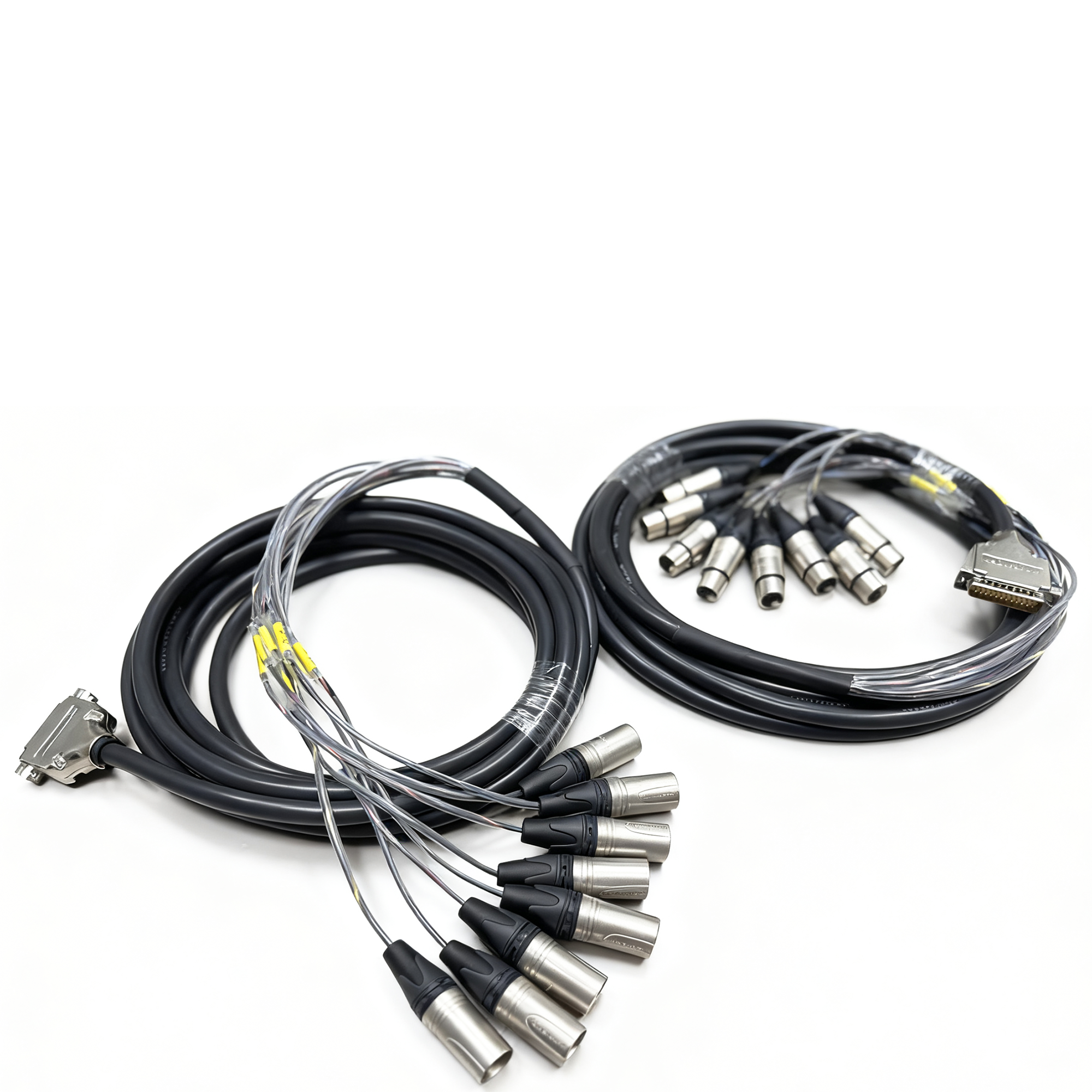

● Includes two male and two female connectors per channel set (four total), supporting either two-input one-output or one-input two-output configurations. View details

Color selection

Product details

The AB-8 is an 8-channel balanced bidirectional signal switcher, with each channel configurable as 1-in-2-out or 2-in-1-out. It supports routing of microphone-level signals, line-level signals, and MIDI data. Designed for multi-channel monitoring in studio environments, it enables manual switching between inputs and outputs. Channels can be toggled individually or globally, while master-slave control allows synchronized switching across larger channel counts. The unit also features a fail-safe mode that maintains signal continuity through default routing when power is disconnected.
